ECA Thermal Insulation Mortar

For Lightweight Roof Top Thermal Insulation

Temperature Difference Up to 11°C ( subject to standard conditions applicable )

Expanded Clay Aggregate (ECA) Cemented Mortar is an ideal replacement of Brickbat Coba before IPS and an ultimate lightweight thermal insulation solution.

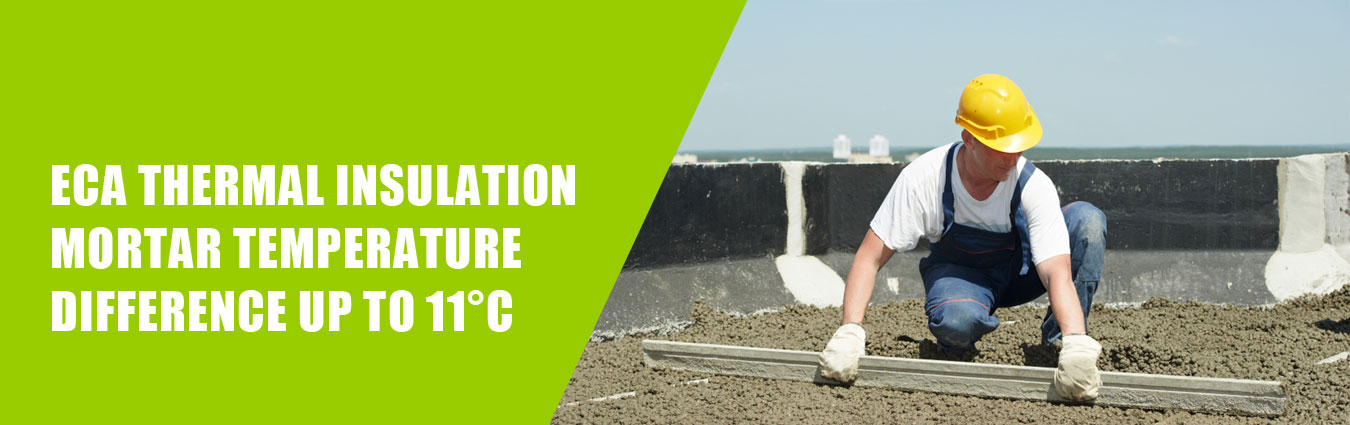

Expanded Clay Aggregate (ECA) cemented mortar is poured on the floor and levelled ( As per desired thickness and slope correction in the range of 50 mm to 100 mm ). For prevention of immediate drying and to allow curing, the mounted layer needs to be covered with plastic material for at least 24 hrs. Post this process, We need to cure with regular spraying of water. Lay any tiles or China Mosaic on the top of the laid Expanded Clay Aggregate (ECA) INSULATION MORTAR.

Key Features:

Dramatical drop in temperature.
Light in Weight and Strong.
Application of the above mortar dramatically improves the thermal and acoustic insulation.
Protects from the thermal cycling effects and enhances the building life.
Saves electricity.
Easy application and maintenance free.

Test Reference for ECA Cemented Mortar

SPECIFICATION
Thermal Conductivity at 10.3°C Mean Temperature	0.1188 W/mk
Density	750.37 Kg/m³
pH	Neutral
Crushing Strength	650.356 N/mm²
Thermal Resistance for 25 mm thickness	0.2105 m²K/W

Benefits

Light Expanded Clay Aggregate, LECA, ECA, Manufacturer, Supplier, India

100 % Inert

Light in Weight

Reduction of 40-50% Load

High Compressive Strength

Cylinder Compressive Strength 0.6 to 3.0 N/mm2

Non-Toxic & Eco- Friendly

100% Eco-Friendly and Sustainable

Excellent Thermal Insulation

Thermal Conductivity 0.097 to 0.10 W/mK

Excellent Sound Insulation

Excellent Acoustic Insulation Property

Excellent Fire Resistance

1 to 6 hrs - 9 to 19 cm LAC 1100 kg/m³

Earthquake Resistant

Lightweight

Saves Electricity

Excellent insulation properties allows greater energy savings

Downloads for ECA Thermal Insulation Mortar

ECA Thermal Insulation Ilustration

Thermal Insulation Video

ECA Mortar For Terrace Insulation

Test Report_Temp Drop_ECA Cemented Mortar

ECA Thermal Insulation Report

Learn more about ECA Thermal Insulation Mortar

Expanded Clay Aggregate (ECA) Thermal Insulation Mortar Mixing Methodology
